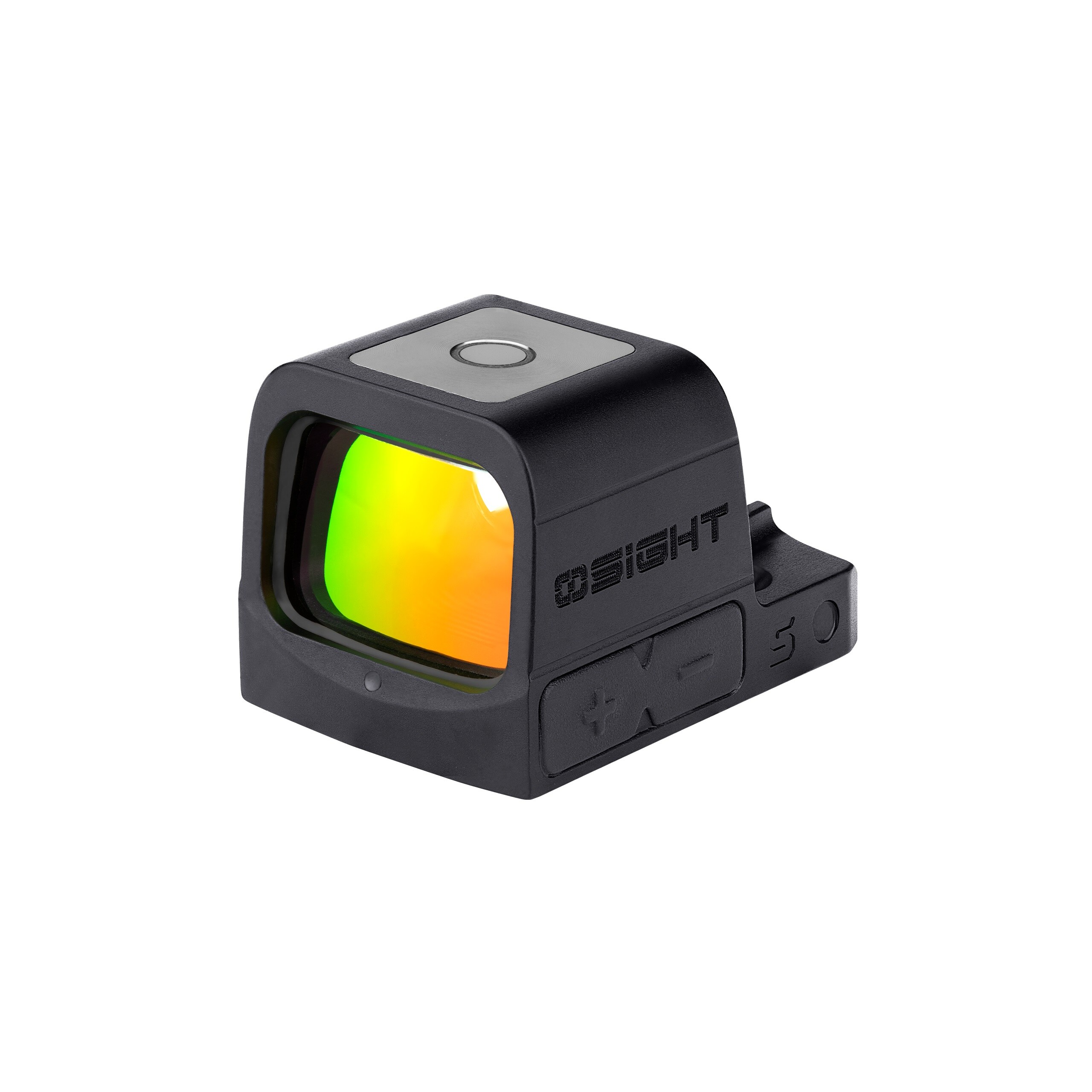

Olight Osight S 2 MOA Red Dot & 32 MOA Circle Collimator

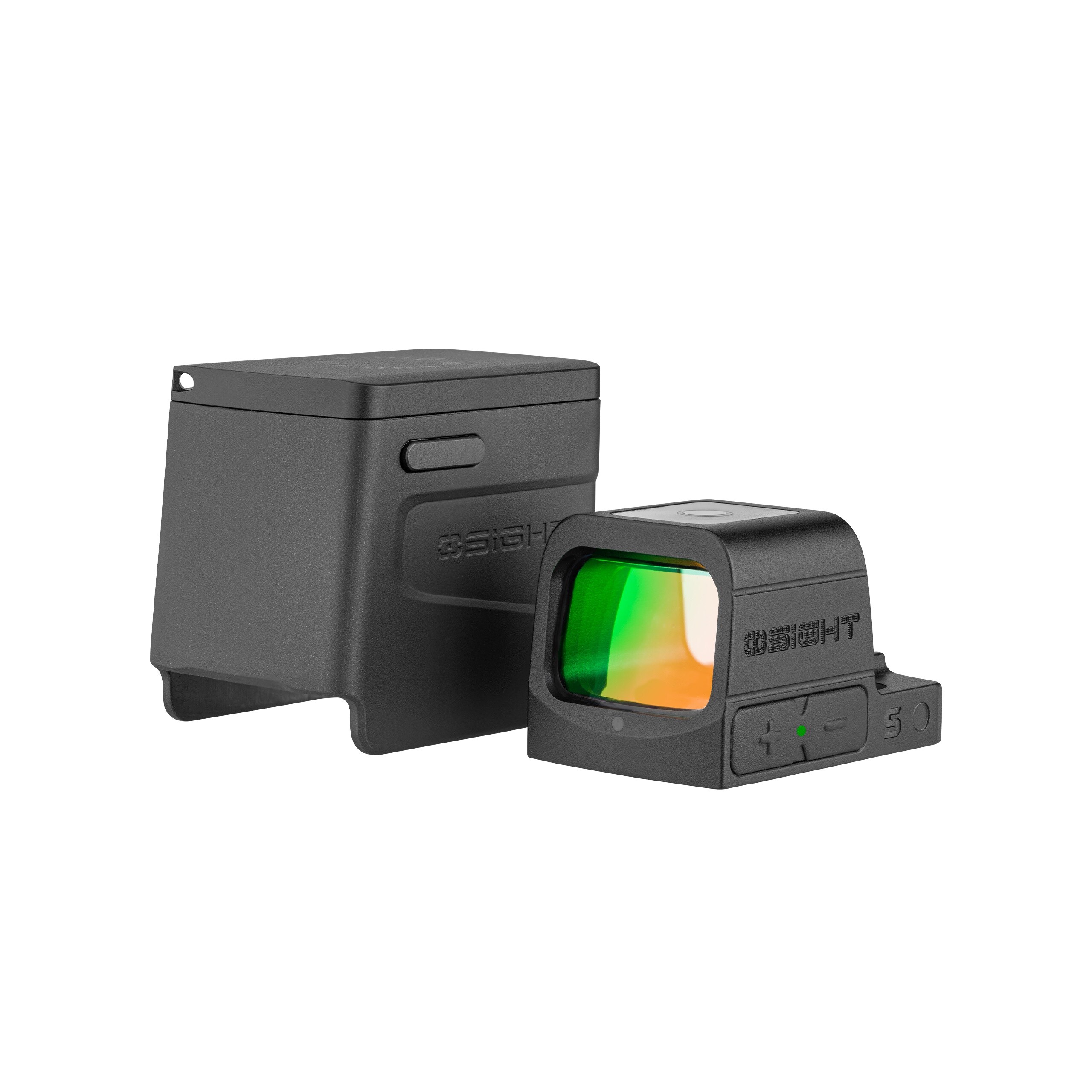

A closed collimator sight featuring a low profile, designed with three selectable reticle patterns to provide superior accuracy, enhanced visibility, and quicker target acquisition based on lighting conditions and shooting distance. Constructed from Olight‘s proprietary OAL aluminum alloy, it combines minimal weight with outstanding durability. The package includes a magnetic charger, which doubles as a protective cover.

Constructed from robust OAL aluminum with a type III black anodized finish, the model utilizes a raw material that is 73% harder than commonly used 6061 aluminum. Offering excellent resistance to damage while remaining lightweight, the material does not add substantial weight to the collimator.

Engineered to meet the stringent IPX7 waterproof standard, the device is safeguarded against immersion in water up to 1 meter deep for 30 minutes. The RMSc standard mounting system and supplied screws deliver reliable compatibility with a wide range of firearms. Operational functionality is ensured within a temperature range of 0 to +45 degrees Celsius.

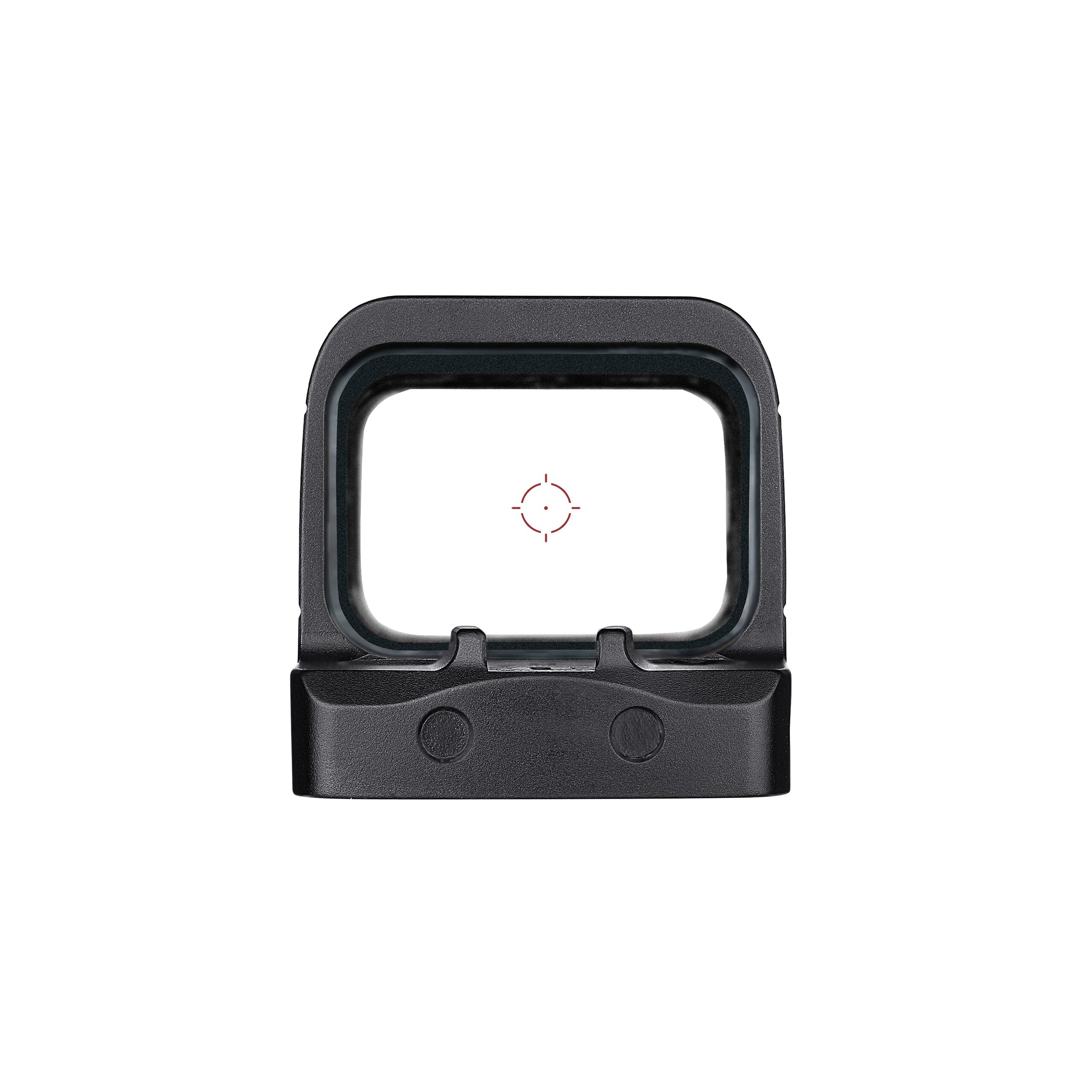

The collimator features three different reticle options, enabling precise adjustments for a variety of shooting scenarios:

• A 2 MOA dot for pinpoint accuracy.
• A 32 MOA circle.
• A combination of a dot and a circle.

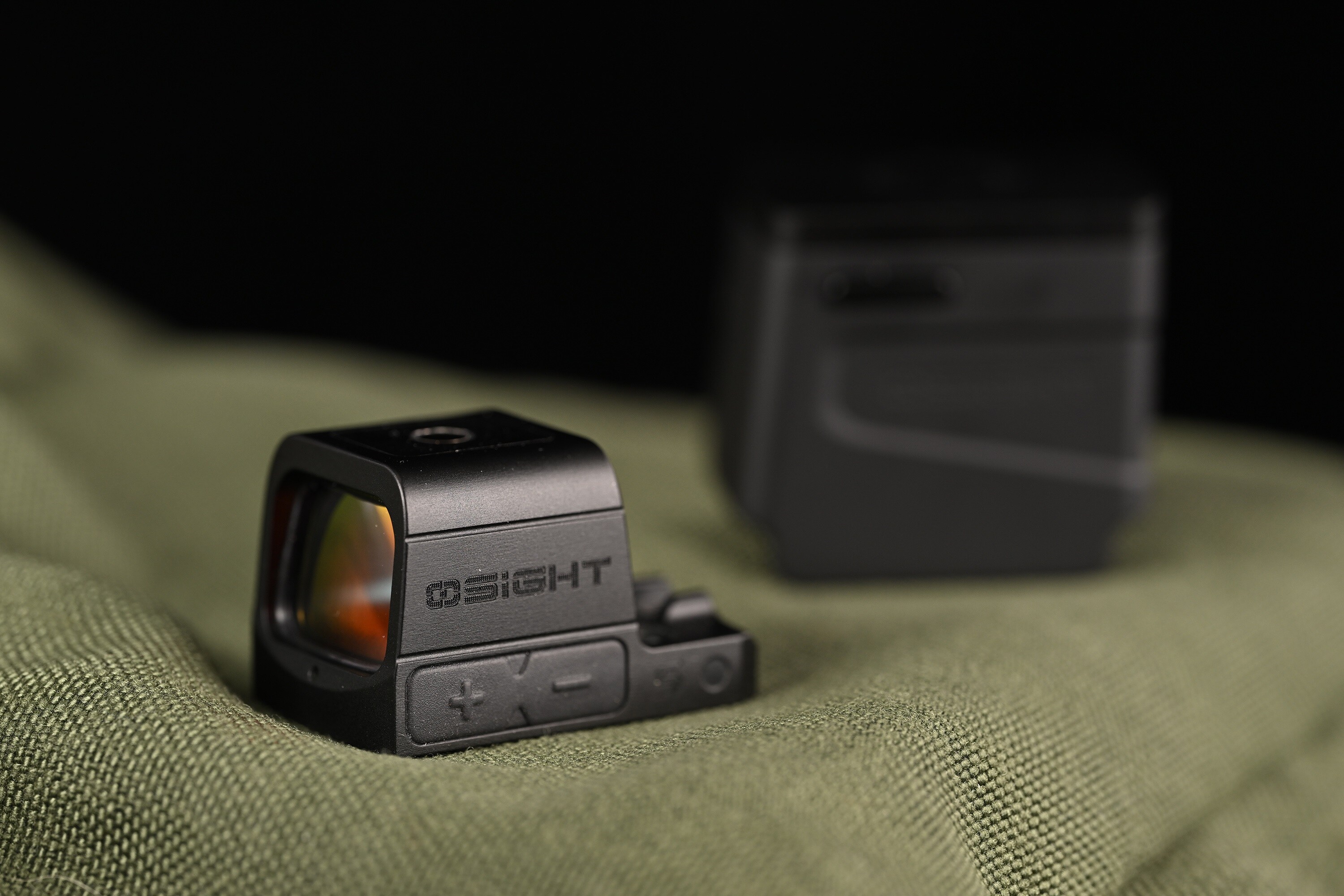

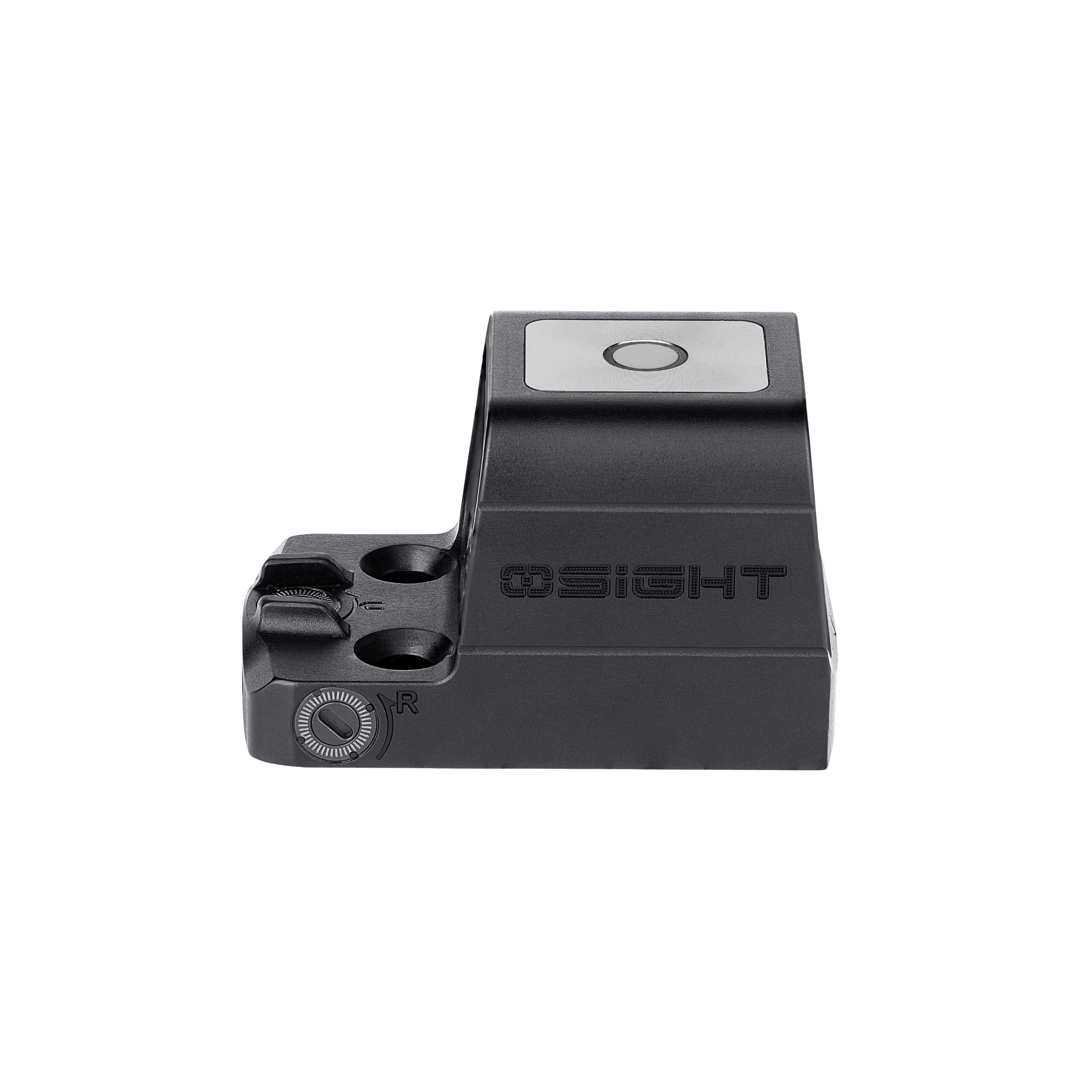

Windage and elevation settings can be fine-tuned within a range of 35 MOA. Adjustments are made using side-mounted buttons, with each click representing 1 MOA. Brightness control offers both manual and automatic (Auto Light Adjust) modes, providing 10 brightness levels for daytime and 2 settings compatible with night vision.

Equipped with a 21 x 13.9 mm lens, the model features advanced multi-coated anti-reflective layers that optimize light transmission and minimize undesirable reflections within the optics, providing superior image clarity. A built-in motion sensor automatically powers down the collimator after 10 minutes of inactivity to conserve energy.

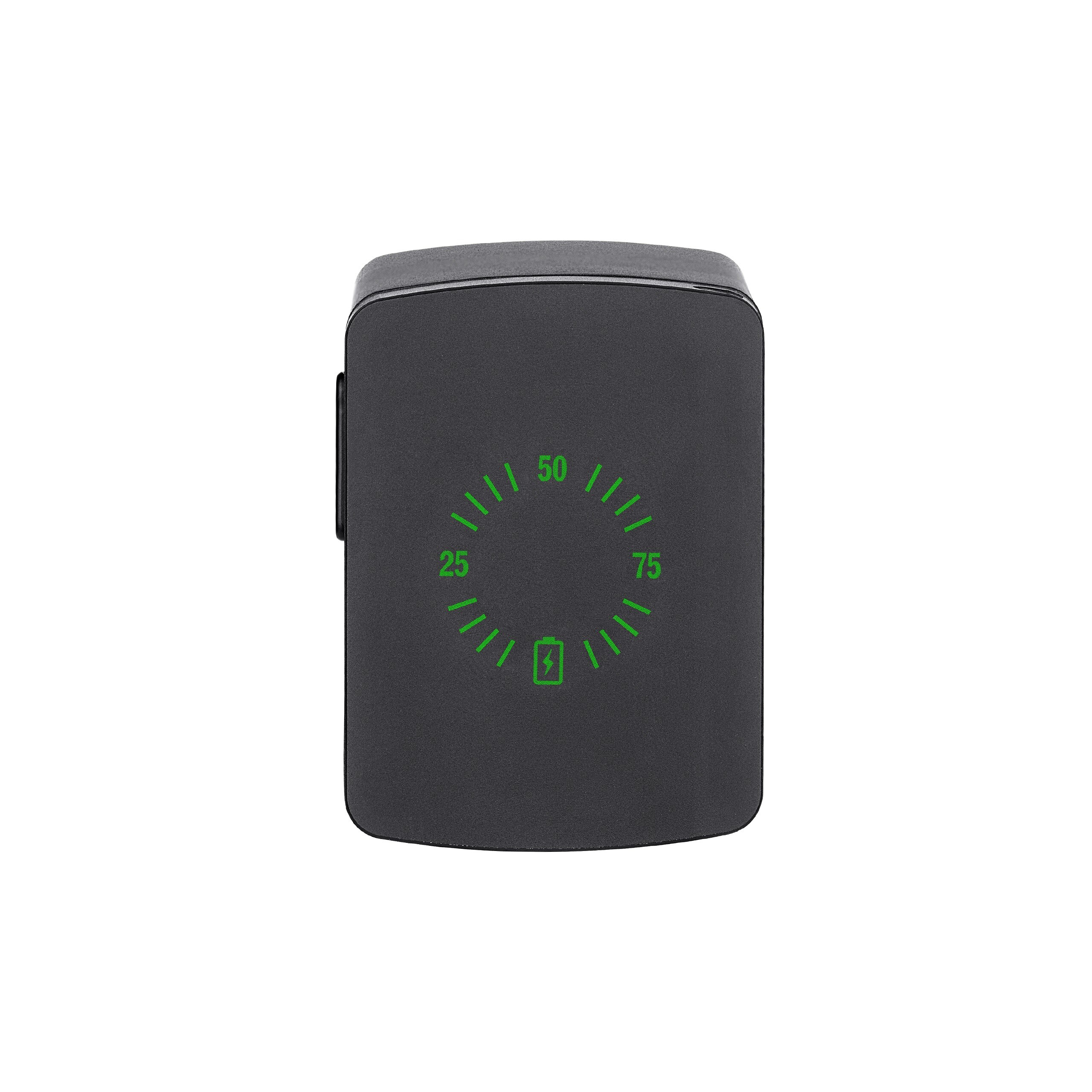

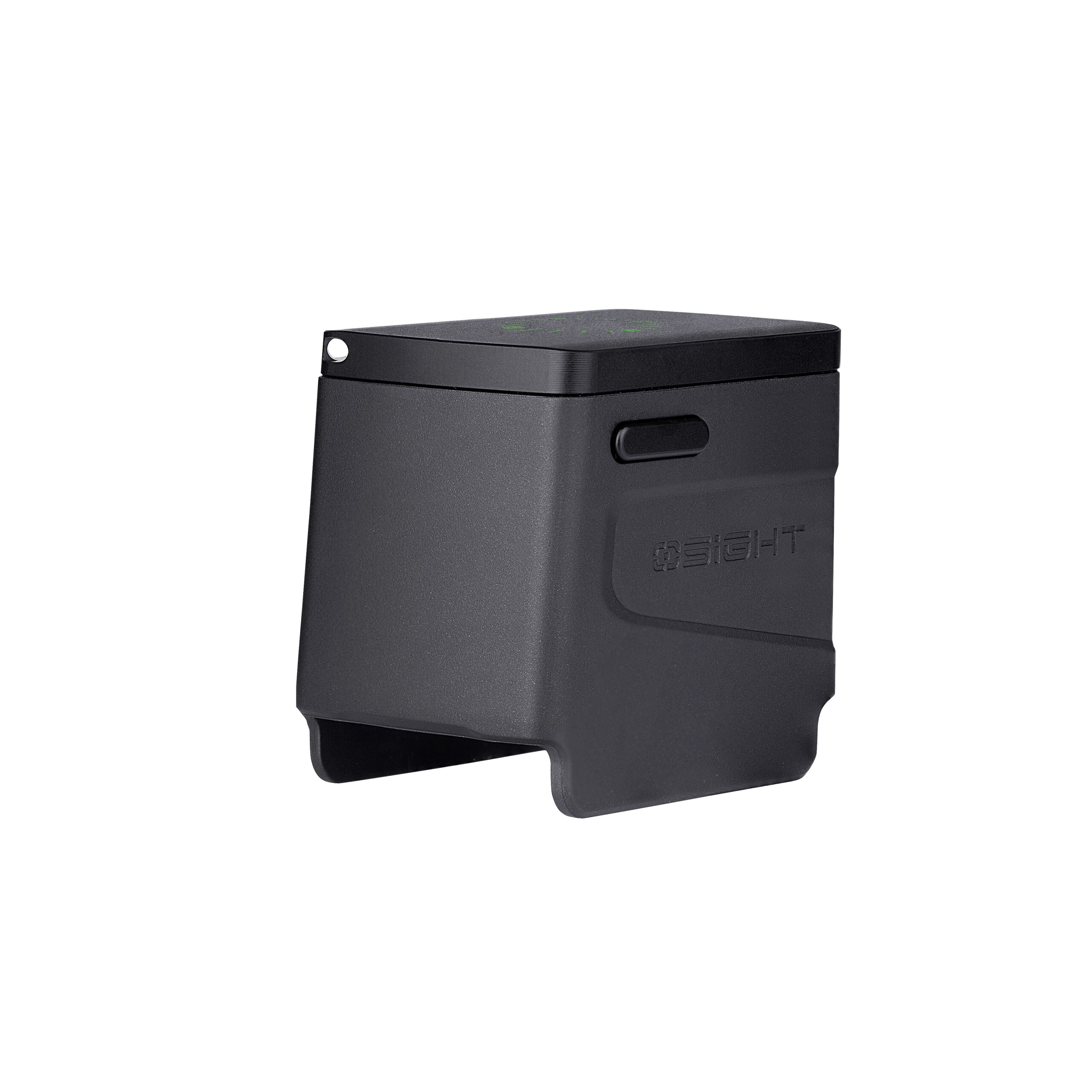

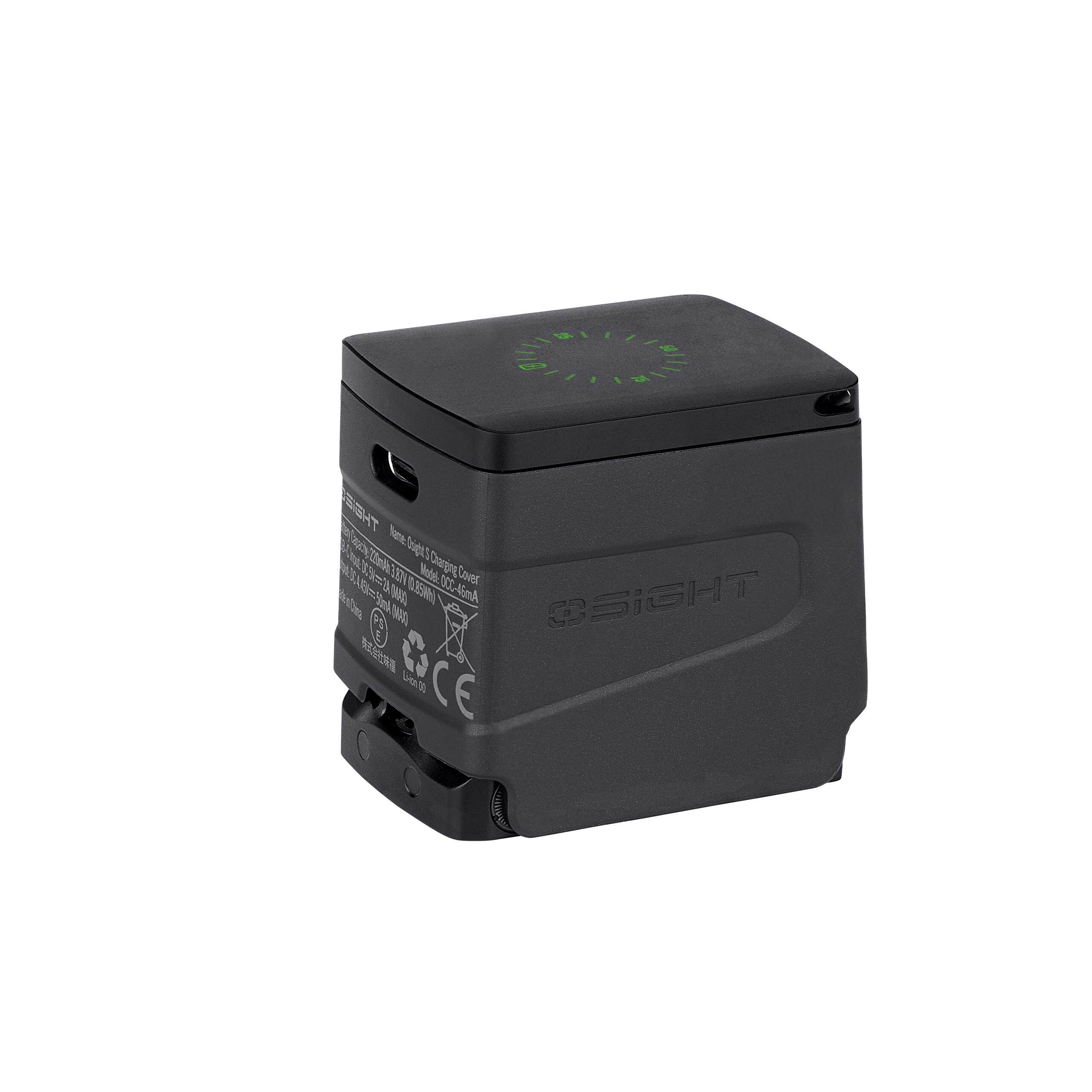

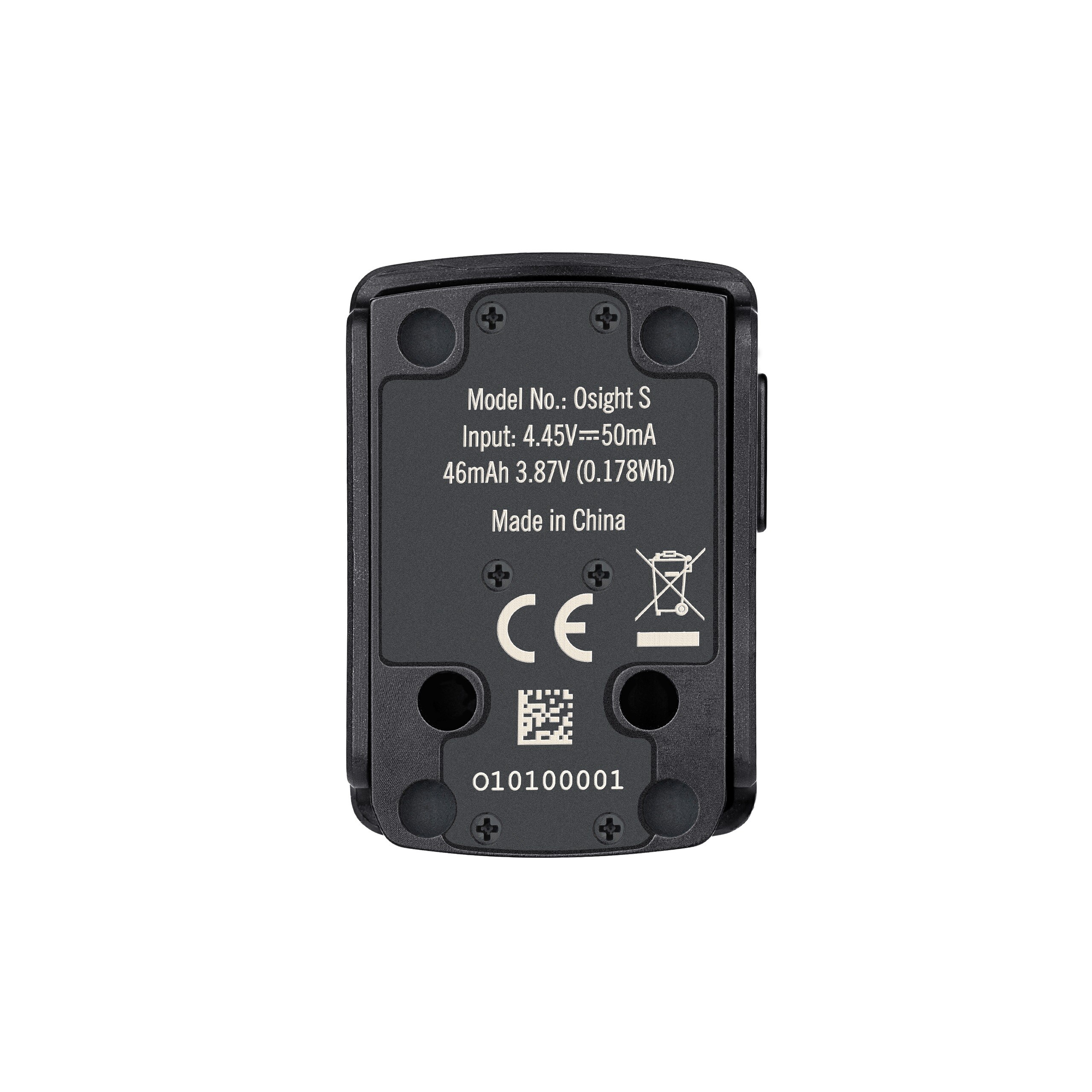

The collimator operates on an integrated Li-Po battery with a capacity of 46 mAh. A magnetic cover featuring a USB-C port serves dual functions as a charger and is equipped with a 220 mAh Li-Po battery. Engineered to meet the IPX4 protection standard, the cover also incorporates a display that indicates the remaining charge for both the cover and the collimator. A single charge provides an operational time of 21,900 hours (in 2 MOA sight mode).

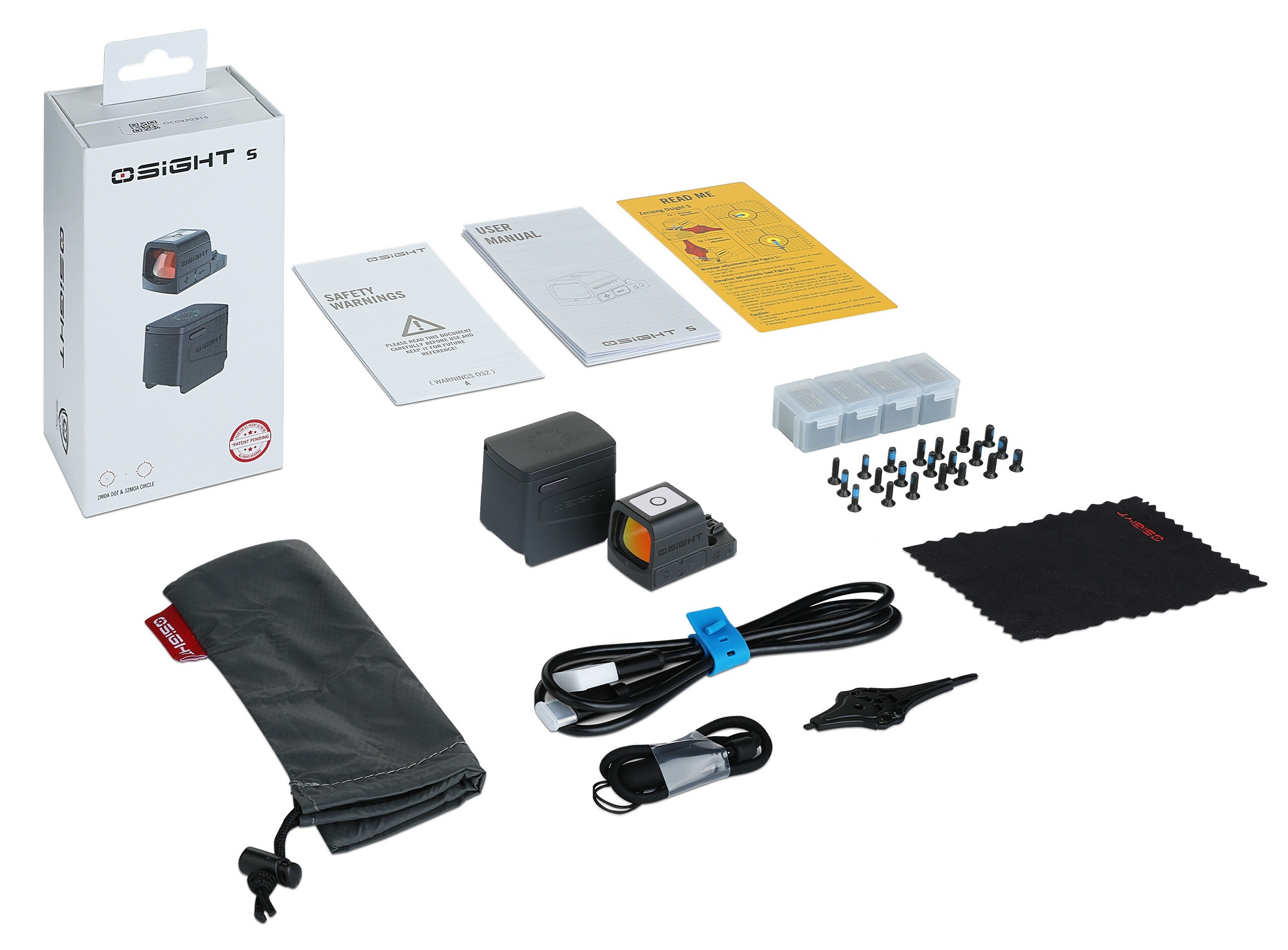

• collimator sight
• magnetic charging case
• adjustment tool
• USB-C charging cable
• Osight S screw kit
• protective pouch
• cleaning cloth
• information leaflets
• user guide

• 2 MOA dot reticle
• 32 MOA circle reticle
• Option to utilize dot and circle reticles together
• 12-level brightness adjustment
• multi-layer coated optics
• integrated motion detection sensor
• magnetic charging port cover
• internal rechargeable power cell
• Robust OAL aluminum construction
• Type III hard anodized finish
• collimator rated IPX7 and cover rated IPX4 for water resistance
• complete accessory set included

Color: Black
Material: OAL aluminum
Sighting dot size: 2 MOA
Sighting dot color: Red
Adjustment range:
- Vertical adjustment: 35 MOA
- Horizontal adjustment: 35 MOA
Power supply: Integrated Li-Po battery
Dimensions:
- Collimator: 40 x 24 x 24 mm
- Charging case: 47 x 35 x 44 mm
Weight:
- Collimator: 27.5 g
- Charging case: 50 g
Manufacturer: Olight, PRC
