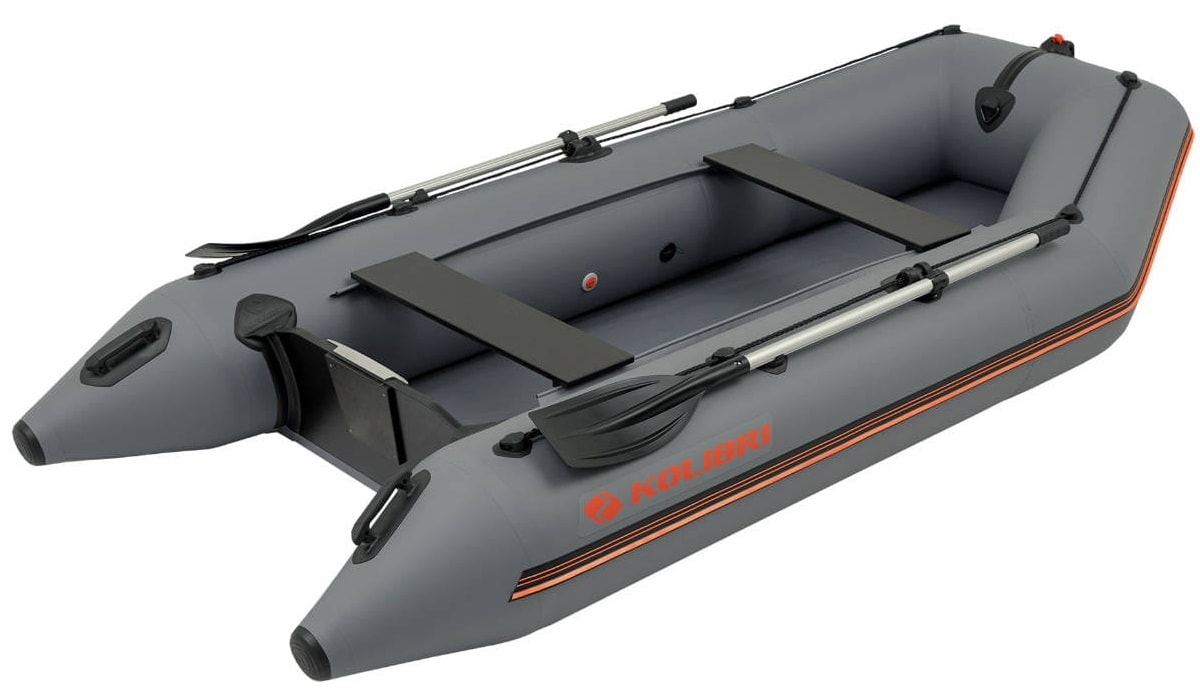

Kolibri KM-330 Pontoon with roll-up floor - Dark Grey

Pontoon in Dark Grey color designed for use in various conditions, where mobility, durability, and quick preparation for work are crucial. Adapted for both oar propulsion and an optional engine.

The enlarged design allows comfortable use by 4 people, distinguishing this model from smaller units. The model meets the requirements of design category C, meaning it's suitable for use on both calm coastal waters and more demanding bodies of water.

The pontoon is made from 5-layer PVC with a grammage of 950 g/m2, which is highly resistant to mechanical damage. The material shows resilience to environmental factors - it does not degrade under UV radiation and maintains its properties in contact with saltwater, fuel, and chemicals.

At the same time, the construction remains flexible and durable within a wide temperature range of -30 to +60 deg. C., allowing the raft to be used in diverse climatic conditions.

The increased dimensions of the pontoon (330 x 160 cm) translate into a large usable area. The interior measuring 222 cm in length and 70 cm in width provides enough workspace and freedom of movement.

Large sides with a diameter of 42 cm and a two-chamber construction provide high buoyancy and stability on water. A maximum load capacity of 480 kg allows for transporting additional equipment without compromising floating properties.

1. Functional handle
2. Rope handle with double hole (end)
3. Rope handle with single hole
4. Swivel rowlock without nut
5. Oar coupling (left, right)
6. Anchor roller
7. Tow handle
8. Bravo air valve
9. Overpressure valve
10. Oar holder
11. Transom mounting bracket
12. Metal transom plate

The seams were made using the contact method with 2-component polyurethane glue, which ensures high tightness and durability of the connections. Additional reinforcements on the inside and outside increase resistance to unsealing during intensive use.

Despite the increased dimensions, the pontoon can be folded to a size of 110 x 65 x 50 cm, allowing for transport and storage without the need for specialized transport means. The assembly of the pontoon is smooth and does not require complex tools, enabling quick preparation for use.

The model is equipped with elements that enhance comfort and safety of use. Safety ropes facilitate maneuvering and lifting the pontoon, as well as increase safety in emergency situations.

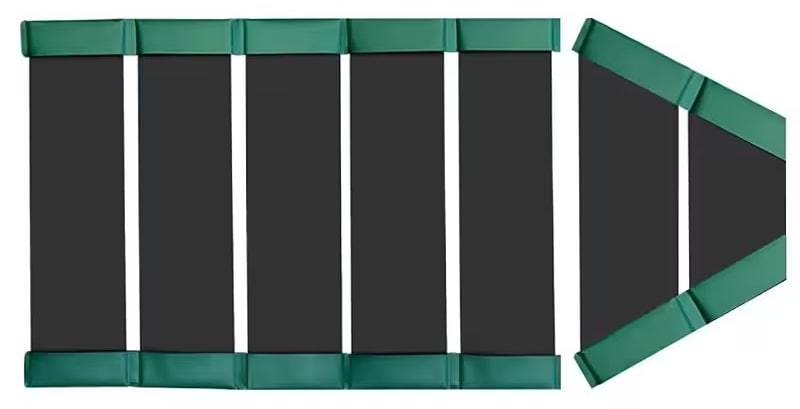

Mounting holders for oars ensure stable placement during navigation and improve usability. The pontoon is equipped with a rolling floor, which enhances internal stability and improves movement comfort and load distribution.

The model uses a tilting transom, which allows to mount an engine with a maximum power of 12 hp (8.8 kW). This solution allows for increased mobility and reduced effort when moving over longer distances.

• pontoon
• 2 oars
• 2 benches
• foot pump
• repair kit
• transport bag

• 5-layer PVC with a grammage of 950 g/m2
• resistance to UV, salt water, and chemicals
• temperature range from -30 to +60 deg.C.
• reinforced, glued seams
• multi-chambered construction with partitions
• safety ropes
• rolling floor
• oar holders
• tilting transom for engine
• space for 4 people
• side diameter 42 cm
• maximum engine power 12 HP (8.8 kW)
• design category C
• external dimensions: 330 x 160 cm
• internal space 222 x 70 cm
• dimensions when packed 110 x 65 x 50 cm
• load capacity: 480 kg
• weight: 31 kg
